System boards

KR 50 1G

ps-kr50-1g_f

ps-kr50-1g_f

plyta-systemowa-kr50-1g_f

plyta-systemowa-kr50-1g.4_f

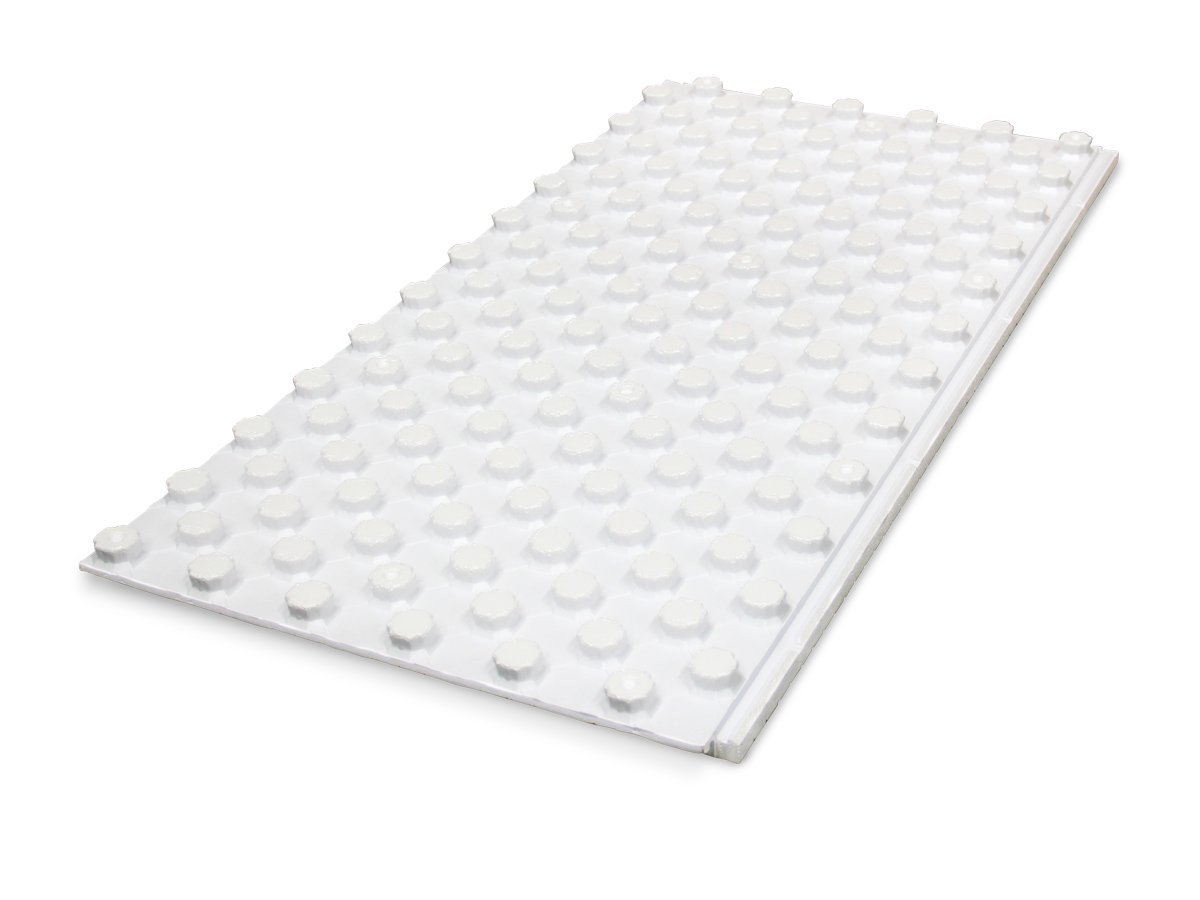

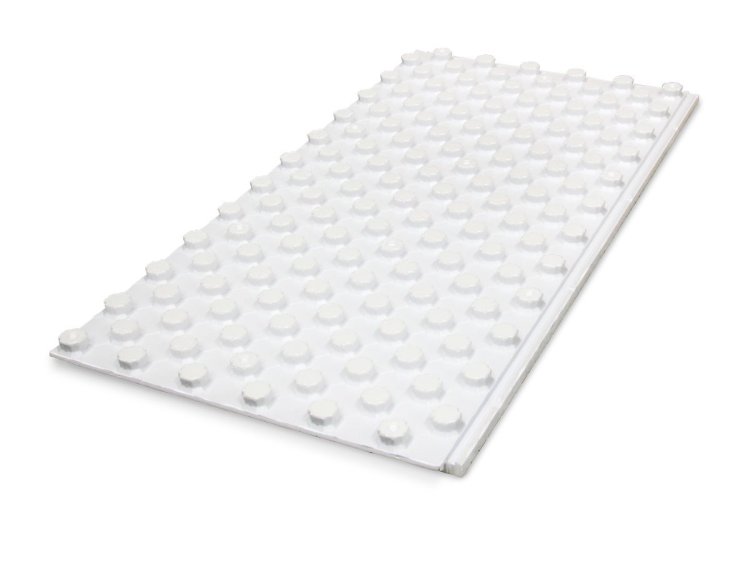

The boards are designed as floor insulation for water floor heating in residential and civic buildings.

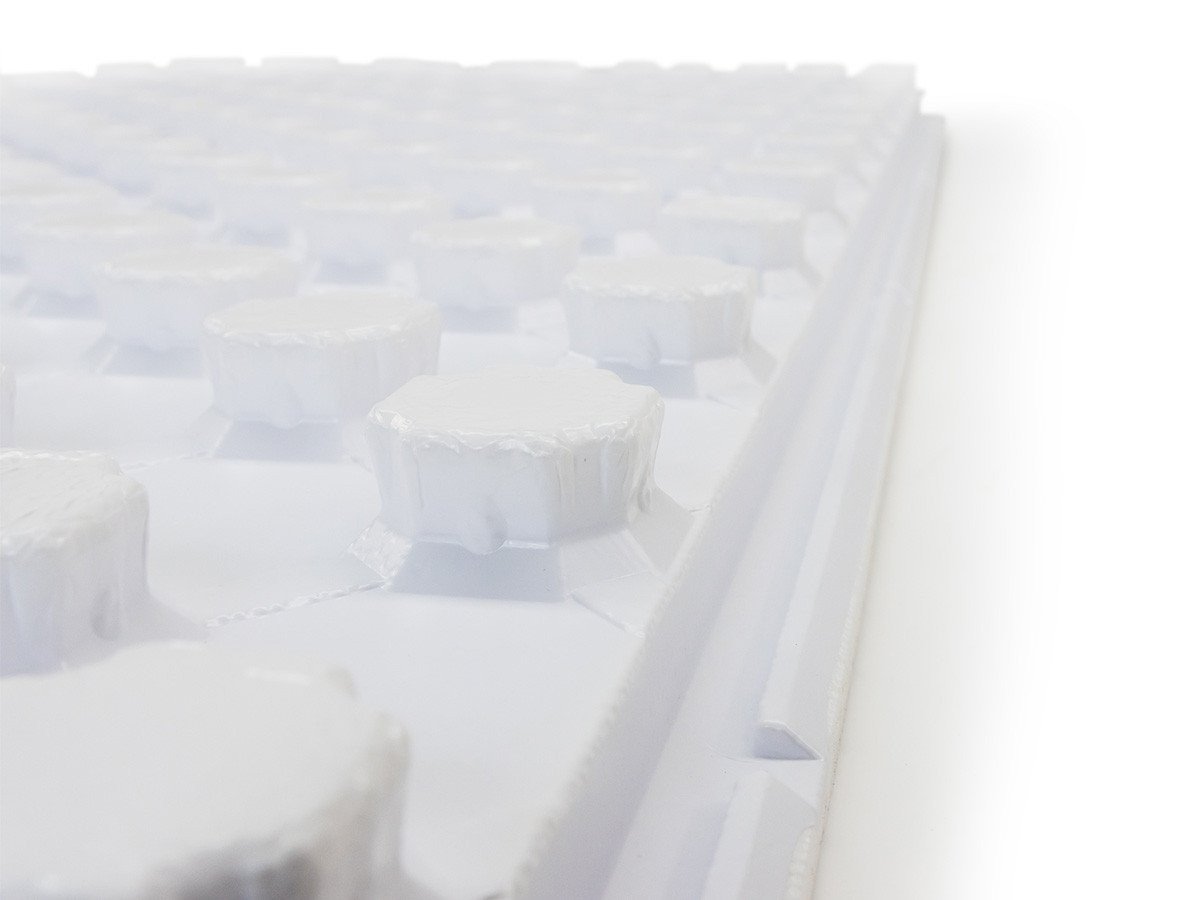

They are used for quick assembly without fixing clips and tight joining between boards thanks to lockjoints.

The boards are made of expanded polystyrene in accordance with EN 13163.
The size of the boards is 1200mm x 600 mm x 22 or 30 mm.
Studs height: 20, 50 mm

MANUFACTURER:

TECHNICAL DATA

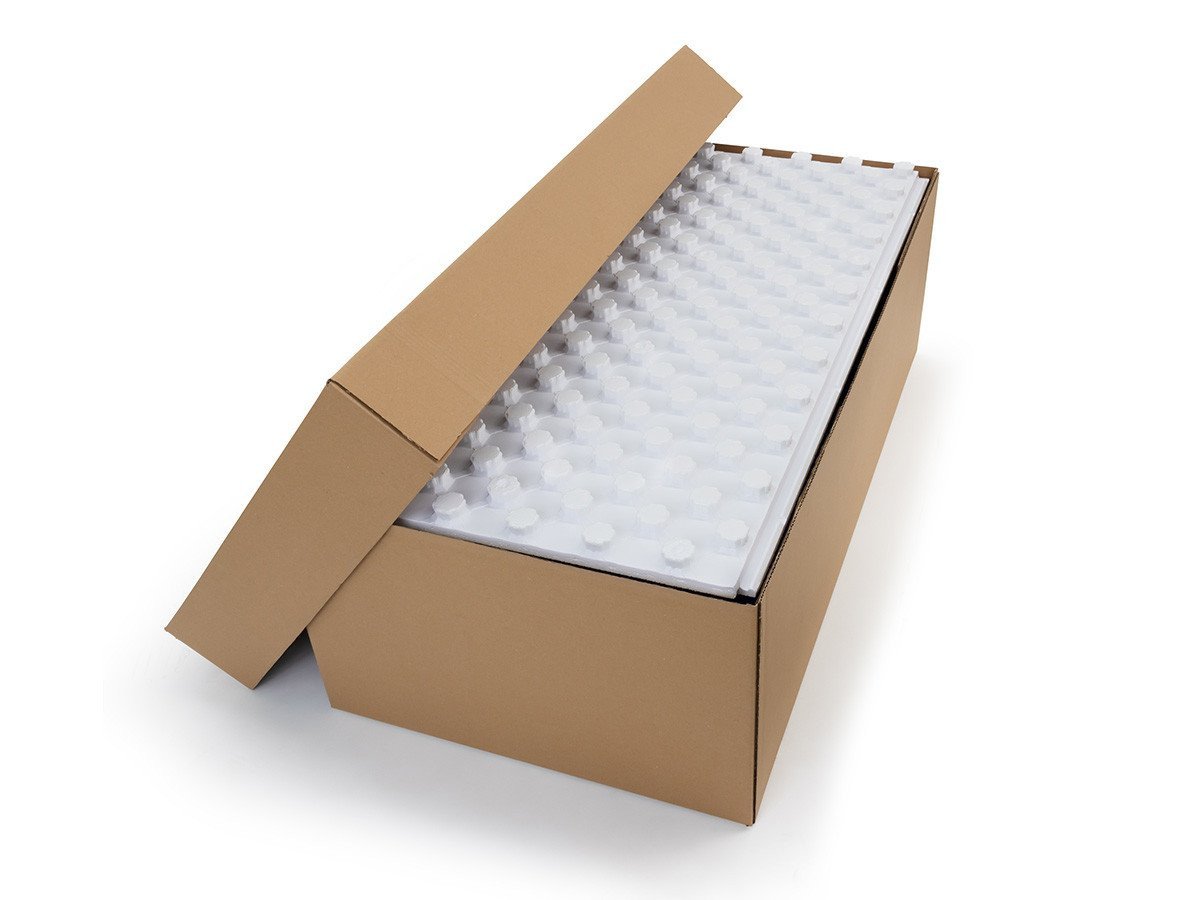

PRODUCT DATA						SINGLE PACK
INDEX NO.	MODEL	PIPE DIAMETER	MATERIAL	THICKENESS	PRODUCT DIMENSIONS (mm)	NETTO WEIGHT (kg)*	QUANTITY (pieces)	GROSS WEIGHT (kg)*
	KR50 1G	16÷17	EPS 150	22 mm	1200 mm x 600 mm x 22 mm	0,54	12	9
	KR50 1G	16÷17	EPS 200	22 mm	1200 mm x 600 mm x 22 mm	0,62	12	10
	KR50 1G	16÷17	EPS 150	30 mm	1200 mm x 600 mm x 30 mm	0,70	10	9,5
	KR50 1G	16÷17	EPS 200	30 mm	1200 mm x 600 mm x 30 mm	0,82	10	10,5

*approximate value
