Insulation boards

IZOROL-PP PACK

The boards are used as thermal, acoustic and damp proof insulation for water floor heating systems in residential and civic buildings.



The main advantage of IZOROL-PP boards is their high level tearing strength of the top fabric layer. It is of critical importance in case of single-layer pipes requiring stronger embedding in the insulation.

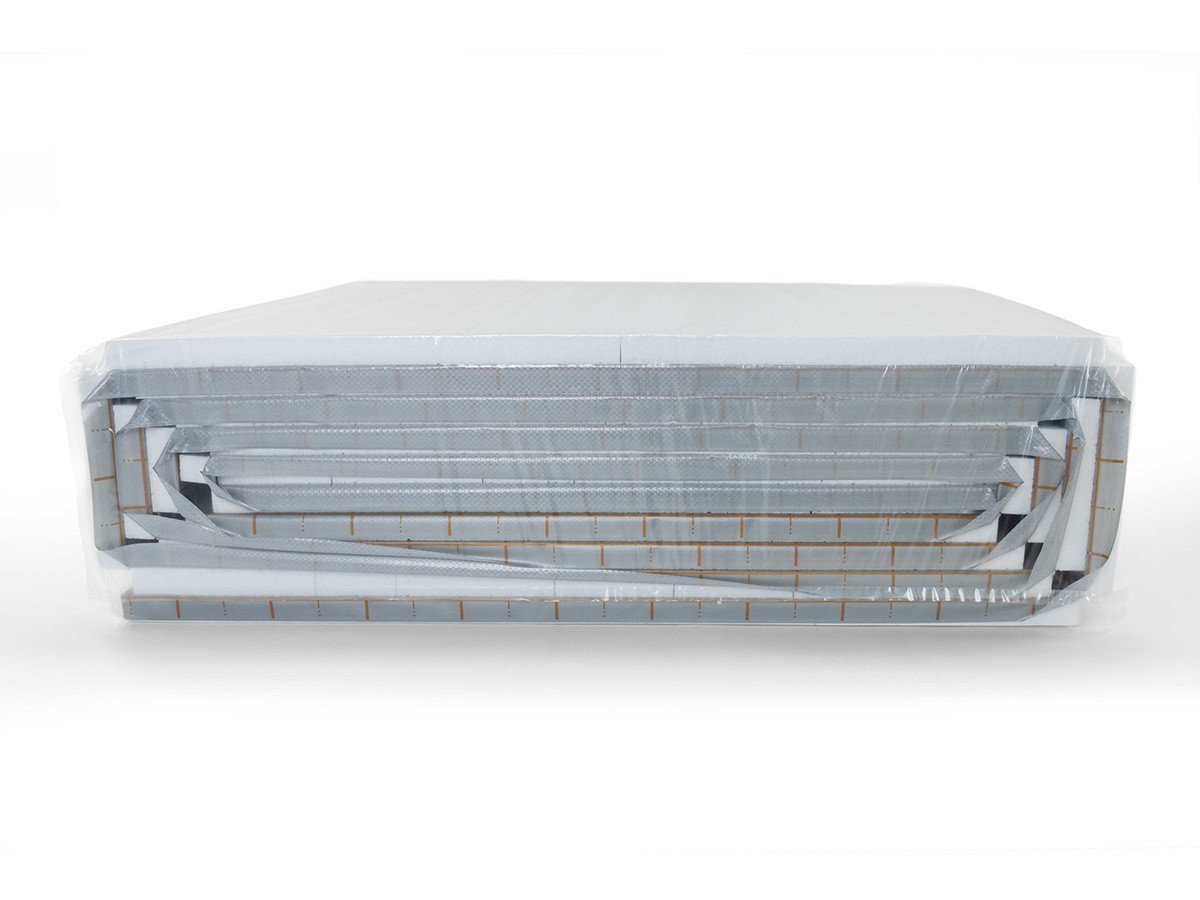

  • IZOROL-PP pack insulation boards were designed as better to transport and store and at the same time with better aesthetic properties.
  • They are made of eps stripes of varying width thanks to which after assembly the boards are cuboidal.
  • The boards are covered with PE foils protecting them against damage during transport and storage.
  • Boards dimensions: 10m x 1m x 20 ÷ 35mm
  • The above packing system is available for all kinds of eps (EPS 100, EPS 200, EPS T 040, EPS T 0450 with thickness ranging from 20 to 35 mm.
MANUFACTURER:
TECHNICAL DATA
PRODUCT DATA SINGLE PACK
MODEL PIPE DIAMETER MATERIAL THICKENESS PRODUCT DIMENSIONS (m) NETTO WEIGHT (kg)* QUANTITY (pieces) DIMENSIONS GROSS WEIGHT (kg)*
PP/L PACK 16÷17 EPS 80/100 20 mm 10 m x 1 m x 0.020 m 0,6010 104 x 100 x 20 6
PP/L PACK 16÷17 EPS 80/100 25 mm 10 m x 1 m x 0.025 m 0,60 10 104 x 100 x 25 6,5
PP/L PACK 16÷17 EPS 80/100 30 mm 10 m x 1 m x 0.030 m 1,02
10 105 x 100 x 30 from 6,00 to 8,00

*approximate value
