Insulation boards

IZOROL-PP DUO

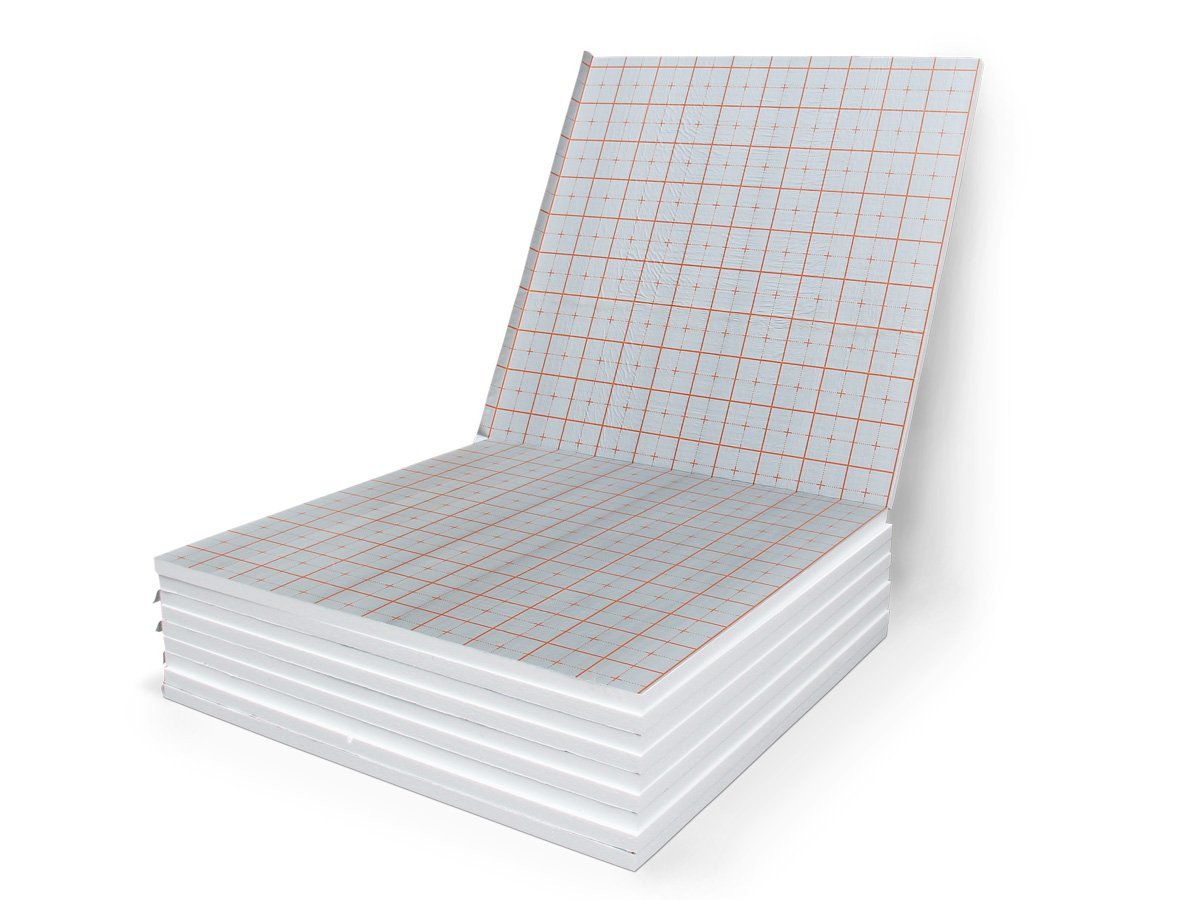

 The boards are used as thermal, acoustic and damp proof insulation for water floor heating systems in residential and civic buildings.



The main advantage of IZOROL-PP duo boards is their high level tearing strength of the top fabric layer. It is of critical importance in case of single-layer pipes requiring stronger embedding in the insulation.

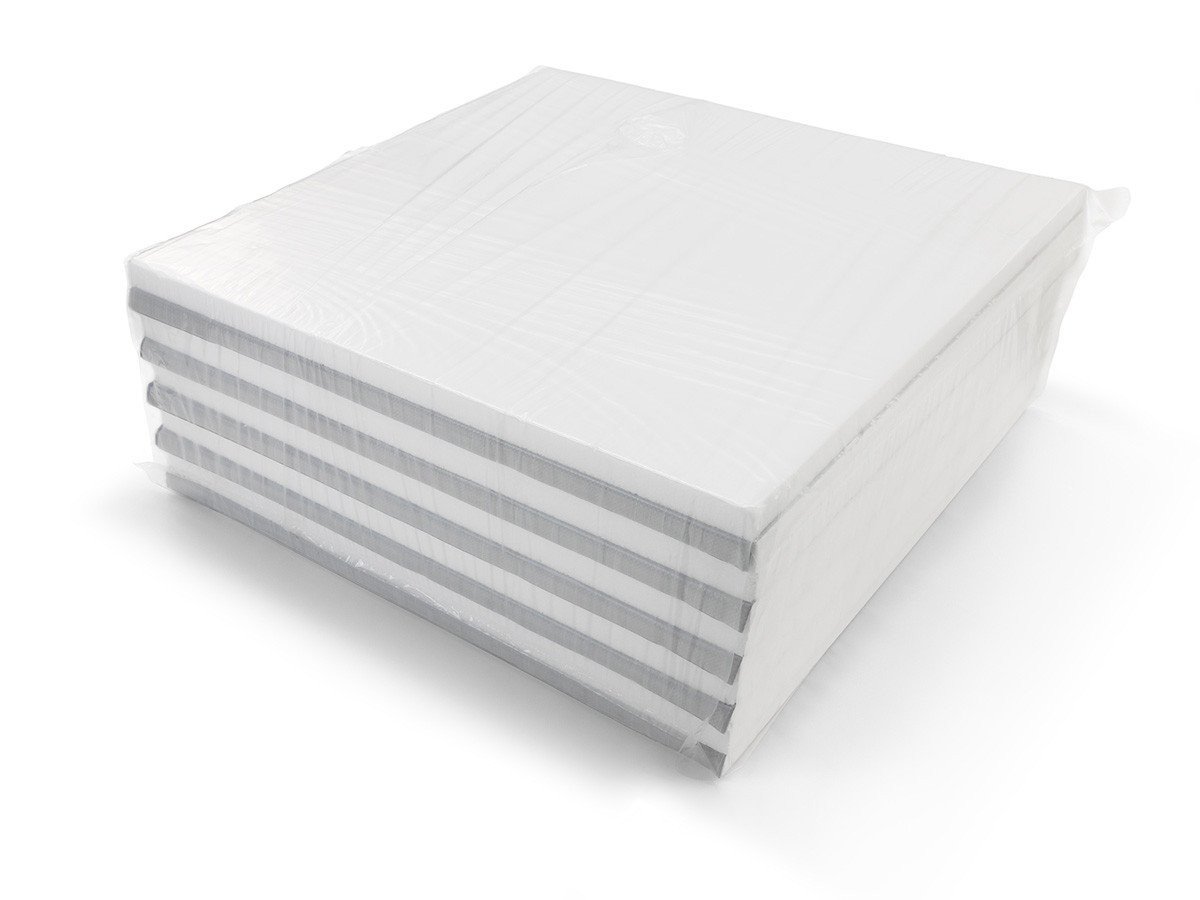

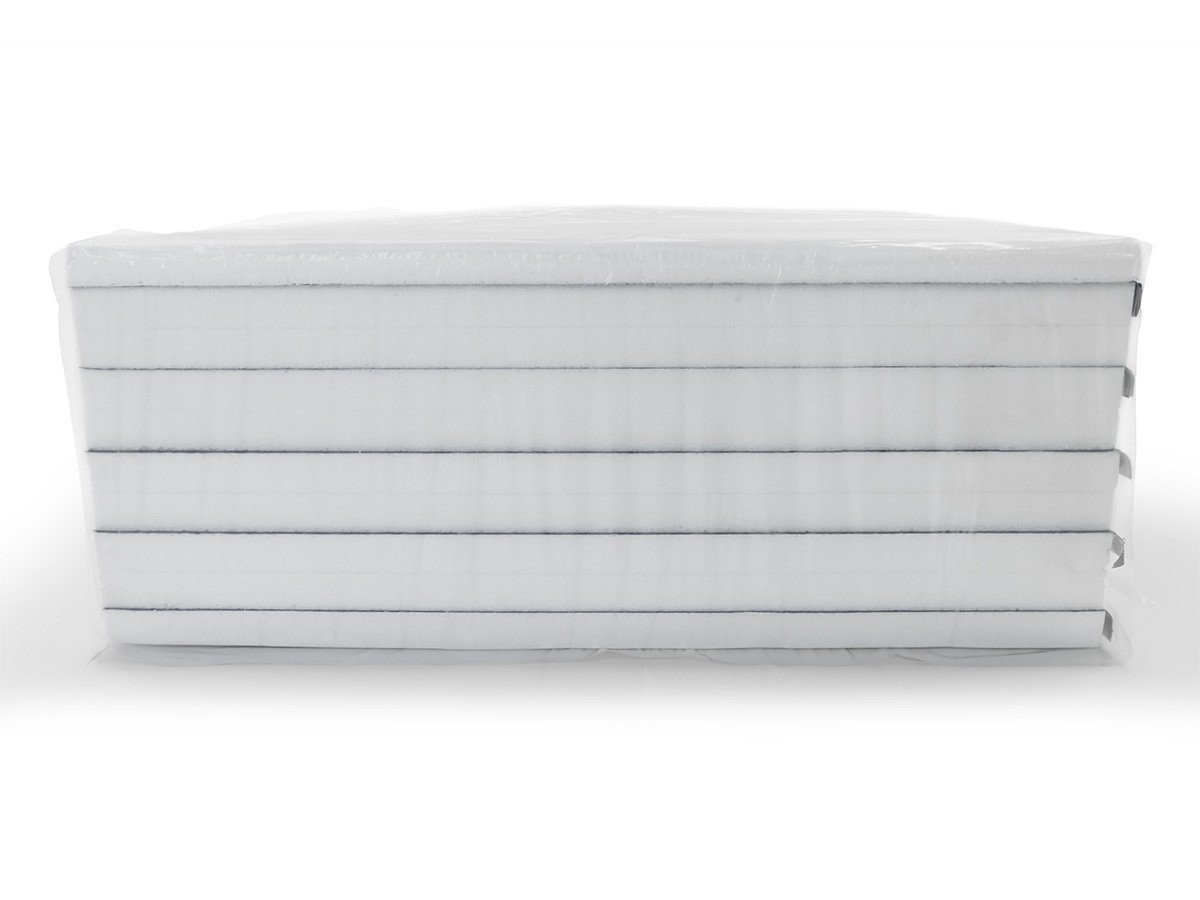

  • Izorol PP-duo boards are made of two whole uncut eps boards, 100 cm x 100 cm. The multiple package unit contains 5 pcs of 2 square metres.
  • The boards are covered with PE foils protecting them against damage during transport and storage.
  • The above packing system is available for all kinds of eps (EPS 100, EPS 200, EPS T 040, EPS T 045), with thickness ranging from 15 to 50mm.
MANUFACTURER:
TECHNICAL DATA
PRODUCT DATA SINGLE PACK
MODEL PIPE DIAMETER MATERIAL THICKENESS PRODUCT DIMENSIONS (m) NETTO WEIGHT (kg)* QUANTITY (pieces) DIMENSIONS GROSS WEIGHT (kg)*
PP/L DUO 16÷17 EPS 80/100 20 mm 2 m x 1 m x 0.020 m 0,4810 104 x 100 x 20 4,8
PP/L DUO 16÷17 EPS 80/100 25 mm 2 m x 1 m x 0.025 m 0,55 10 104 x 100 x 25 5,5
PP/L DUO 16÷17 EPS 80/100 30 mm 2 m x 1 m x 0.030 m 0,69 10 105 x 100 x 30 6,9
PP/L DUO 16÷17 EPS 80/100 50 mm 2 m x 1 m x 0.050 m 1,15 10 100 x 100 x 50 from 6,00 to 10,00

*approximate value
