Insulation boards

IZOROL-L DUO

The boards are used as thermal, acoustic and damp proof insulation for water floor heating systems in residential and civic buildings.

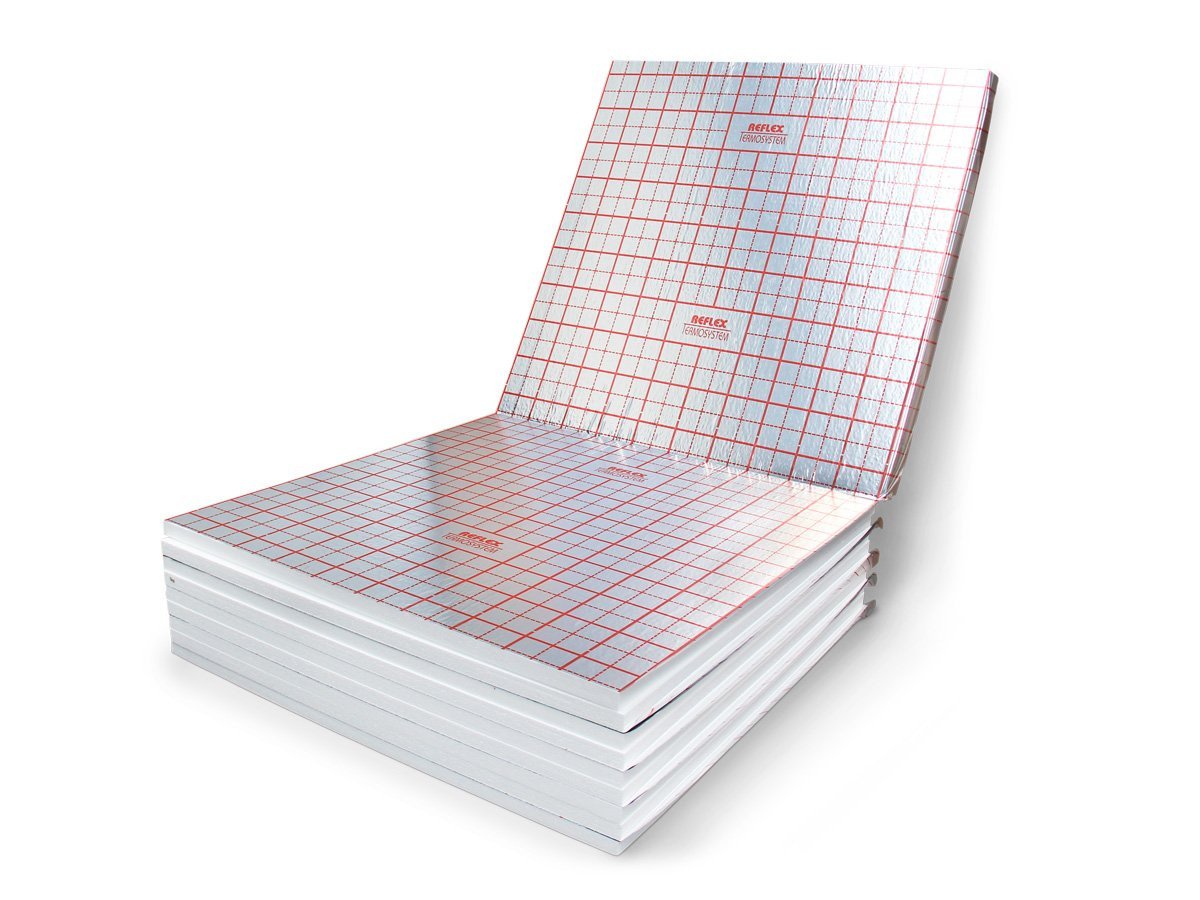

  • IZOROL-L duo insulation boards consist of two uncut EPS boards, 100cm x 100 cm. They come in multiunit packages of 5 pcs x 2 m².

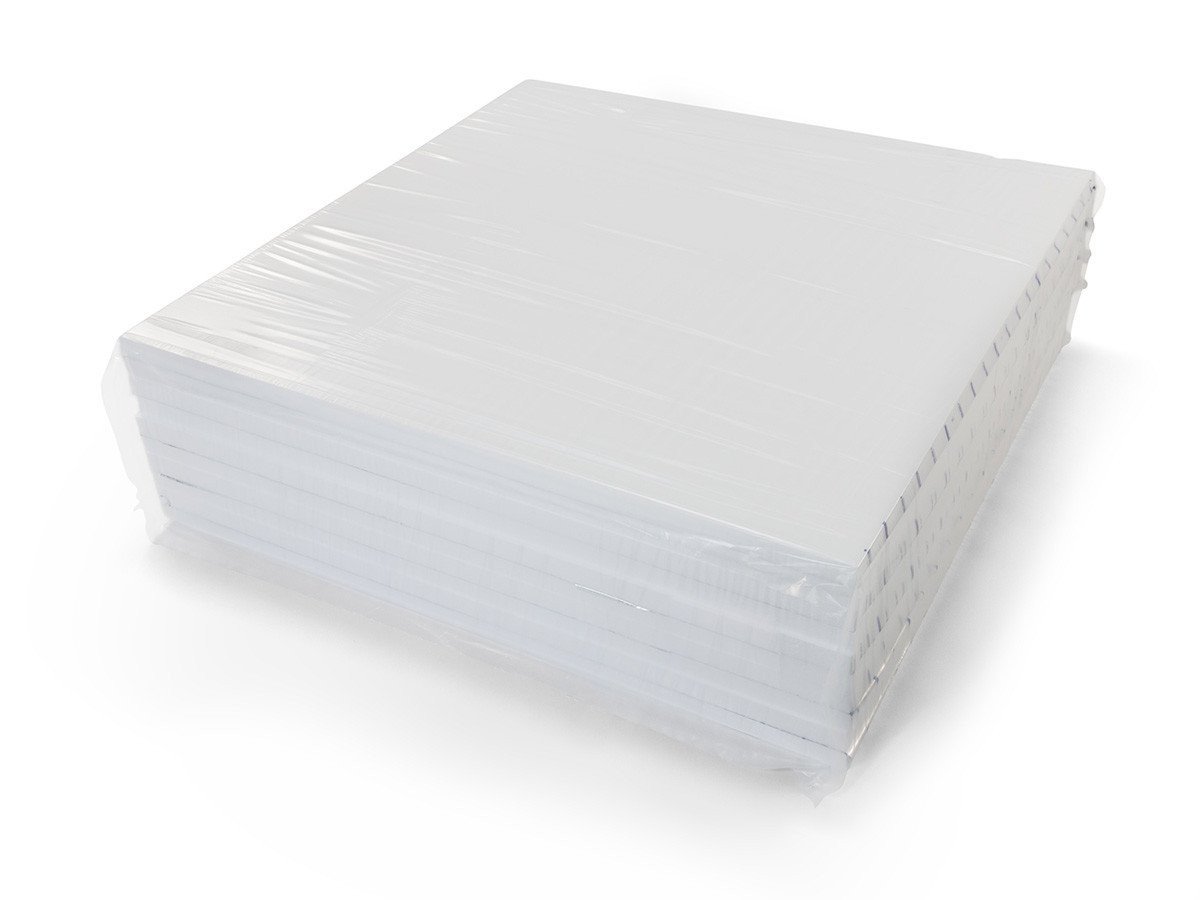

  • They are wrapped in PE foil to protect them against damage during transport and storage.
  • Such packing system is available for all kinds of eps (EPS 100, EPS 200, EPS T 040, EPS T 045), of thickness ranging from 15 mm to 50 mm.
MANUFACTURER:
TECHNICAL DATA
PRODUCT DATA SINGLE PACK
MODEL PIPE DIAMETER MATERIAL THICKENESS PRODUCT DIMENSIONS (m) NETTO WEIGHT (kg)* QUANTITY (pieces) DIMENSIONS GROSS WEIGHT (kg)*
PP/L DUO 16÷17 EPS 80/100 20 mm 2 m x 1 m x 0.020 m 0,4810 104 x 100 x 20 4,8
PP/L DUO 16÷17 EPS 80/100 25 mm 2 m x 1 m x 0.025 m 0,55 10 104 x 100 x 25 5,5
PP/L DUO 16÷17 EPS 80/100 30 mm 2 m x 1 m x 0.030 m 0,69 10 105 x 100 x 30 6,9
PP/L DUO 16÷17 EPS 80/100 50 mm 2 m x 1 m x 0.050 m 1,15 10 100 x 100 x 50 from 6,00 to 10,00

*approximate value
